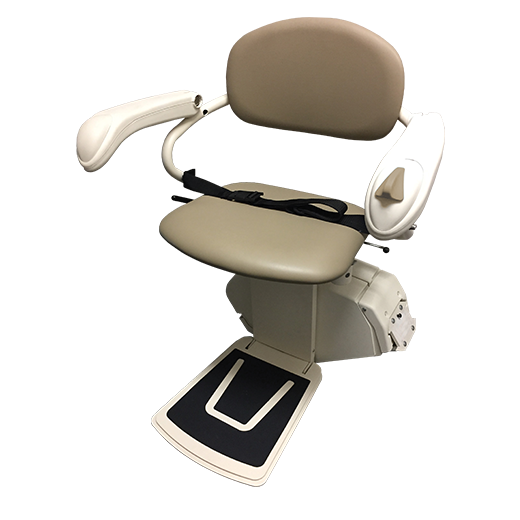

The Pinnacle Stair Lift has an established reputation as an industry leader for its innovative design, solid performance and reliability. Its patented drive system serves as the cornerstone that makes this stair lift different from all others on the market.
The SL300 gives you peace of mind knowing its efficient motor offers extended performance during power loss, up to 40 trips up and down. Owners of this stair lift will enjoy a smooth stable ride due to its patented Helical Worm Gear and Nylon Polymer Gear Rack. Pinnacle is the most compact of stair lifts, folding closer to the wall so others can pass easily.
- Drive Type: Polymer Worm / Worm-Rack
- Battery Powered: Yes
- Self Installable: Yes
- Basic Installation Included: No
- Standard Capacity: 300 lb
- Max Track Length, Standard: 15,5'
- Max Track Length, Optional: 70'
- Unit Footprint, Parked: 11"
- Rail Angle, Min: 32°
- Rail Angle, Max: 45°
- Seat Width: 19"
- Seat Depth: 16"
- Swivel Seat: Yes
- Flip-Up Seat: Yes
- Flip-Up Armrests: Yes
- Constant Pressure Controls: Yes
- Footrest Safety Sensor: Yes
- Digital Diagnostics Display: No
- Key Lock: Yes
- Track Lengths Selection: 15' (180") is Standard *
- Additional Track (Maximum 70' Including the 15' Standard Track)
- Additional Brackets (comes with standard)
- Options
- Power Options
- Call Stations
- Orientation (looking UP the staircase)
- Installation
- Installation Permit
- Installation Special Cases
- Measurements
* Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
$0.0015' (180") of Track
$0.00Length in inches if Shorter than 180" (allow +7" for entry/exit)
$0.00
Up to 3' of Additional Track
$250.00Up to 5' of Additional Track
$393.00Up to 7'9" (93") of Additional Track
$536.00
Standard Brackets
$29.00Tall Brackets
$29.00
Track Cut to Custom Length (Required for any track cut)
$143.00Chassis Obstruction Sensors
$108.00Key Lock on Chasis
$143.00Seatbelt Extension
$100.00Manual Lowering Tool
$50.00Folding Rail - Left Hand
$1,795.00Folding Rail - Right Hand
$1,795.00
No Power Options
$0.00Power Swivel
$860.00Power Footrest
$795.00Power Swivel and Power Footrest
$1,490.00
Top & Bottom Call-Send Stations
$0.00
The stair lift will be on the left
$0.00The stair lift will be on the right
$0.00
NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
$0.00Self Installation
$0.00Nationwide Installation
$599.00Nationwide Installation and Measurement Service
$799.00Double Stair Lift Installation Service - Per Stair Lift
$437.50
Installation On Concrete, Steel, or Tile Stairs
$300.00Installation In Remote or Limited Access Location
$345.00Additional Charge for Installation in the States of: New York, and Massachusetts
$150.00Existing Stair Lift Removal
$499.00
Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
$0.001. Overall length
$0.002. Top stair to bottom stair
$0.003. Staircase width
$0.004. Bottom clearance
$0.005. Rise of one step
$0.006. Tread of one step
$0.007. Diagonal
$0.008. Door at the top
$0.00Need help measuring? Please see our "How to Measure" page.
