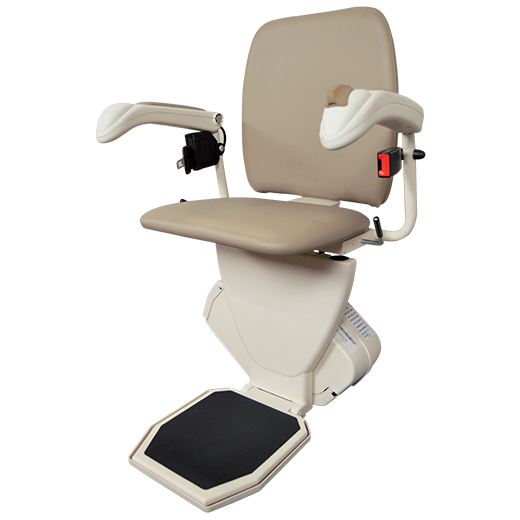

Harmar Pinnacle Premium Stair Lift

$4,495.00
Plus ShippingFree Shipping

spacer

The Pinnacle Premiun has earned its name and reputation for standing above the rest. Design, Form and Function come together to make Pinnacle the most reliable, durable, and sought after stair lift on the market.

What makes Pinnacle different? It's what you don't see, the patented Helical Worm Gear and reinforced Nylon Polymer Gear Rack. This innovative drive system eliminates maintenance, provides you savings with lower energy bills, and delivers a smooth, stable ride you can rely on.

Although exceptionally compact, Pinnacle boasts a 350 lb capacity with a wide, comfortable seat that swivels at the top landing to aid in safely entering and exiting the lift. Safety sensors prevent the lift from running if the seat is not in the proper position or if something is blocking the stairway or track.
Additional Images

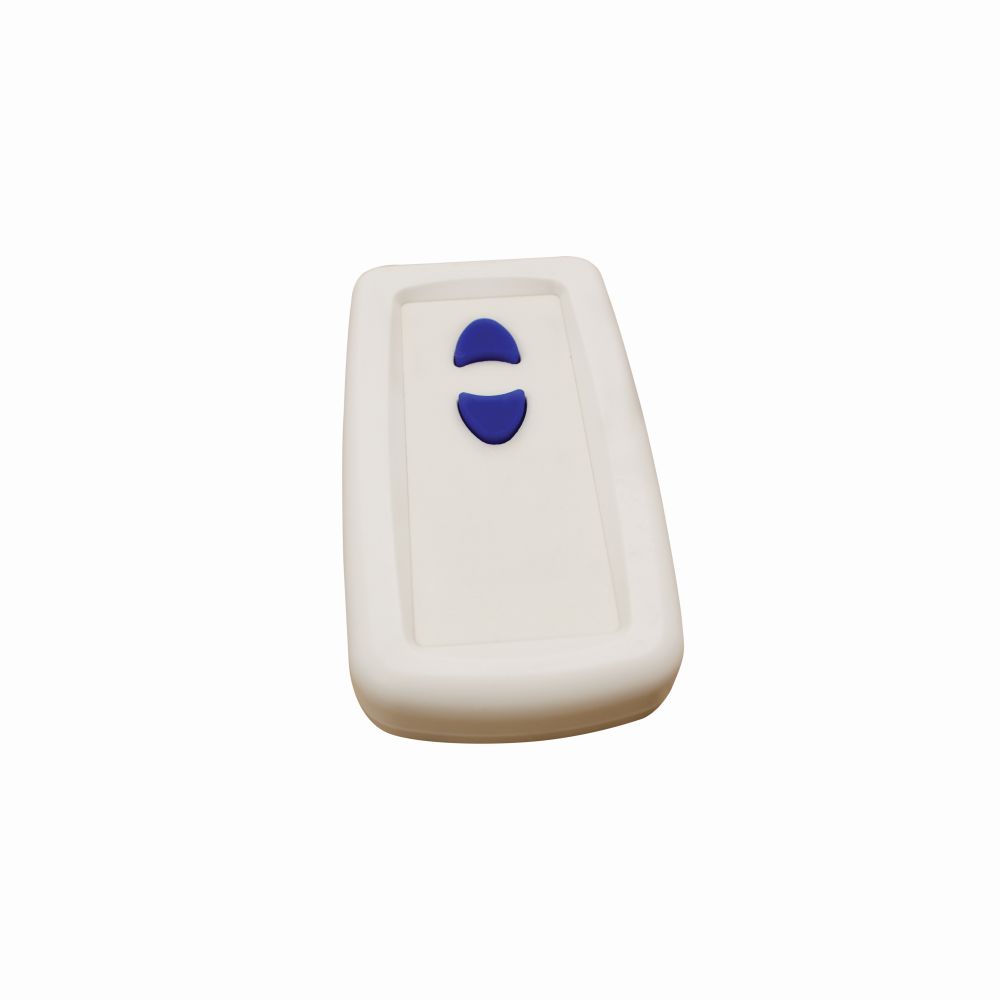

  • Remote
  • Drive TypePolymer Worm / Worm-Rack
  • Battery PoweredYes
  • Self InstallableYes
  • Basic Installation IncludedNo
  • Standard Capacity350 lb
  • Max Track Length, Standard15.5'
  • Max Track Length, Optional70'
  • Unit Footprint, In Use22.5"
  • Unit Footprint, Parked11"
  • Track Footprint7"
  • Track MaterialAliuminum
  • Track Width4.875"
  • Rail Angle, Min32°
  • Rail Angle, Max52°
  • Seat Width20"
  • Seat Depth15.5"
  • Swivel SeatYes
  • Flip-Up SeatYes
  • Flip-Up ArmrestsYes
  • Call Stations IncludedWireless
  • Constant Pressure ControlsYes
  • Footrest Safety SensorYes
  • Digital Diagnostics DisplayNo
  • Power Cord Lengths10' with the charger box in the middle
  • Key LockYes


Available Options and Upgrades
Click on the category tabs below to see the available options for this lift chair or mobility product. Click on option image to enlarge.
  • Track Lengths Selection: 15' (180") is Standard *
  • Additional Track (Maximum 70' Including the 15' Standard Track)
  • Additional Brackets (comes with standard)
  • Options
  • Power Options
  • Call Stations
  • Orientation (looking UP the staircase)
  • Installation
  • Installation Special Cases
  • Measurements
  • option pic

    * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.

    $0.00
  • No Image

    15' (180") of Track

    $0.00
  • No Image

    Length in inches if Shorter than 180" (allow +7" for entry/exit)

    $0.00

spacer

  • No Image

    Up to 3' of Additional Track

    $250.00
  • No Image

    Up to 5' of Additional Track

    $393.00
  • No Image

    Up to 7'9" (93") of Additional Track

    $536.00

spacer

  • No Image

    Standard Brackets

    $29.00
  • No Image

    Tall Brackets

    $29.00

spacer

  • No Image

    Track Cut to Custom Length (Required for any track cut)

    $143.00
  • No Image

    Key Lock on Chasis

    $143.00
  • No Image

    Seatbelt Extension

    $100.00
  • No Image

    Manual Lowering Tool

    $50.00
  • No Image

    Folding Rail - Left Hand

    $6,195.00
  • No Image

    Folding Rail - Right Hand

    $6,195.00

spacer

  • No Image

    No Power Options

    $0.00
  • No Image

    Power Swivel

    $860.00
  • No Image

    Power Footrest

    $795.00
  • No Image

    Power Swivel and Power Footrest

    $1,495.00

spacer

  • No Image

    Top & Bottom Call-Send Stations

    $0.00

spacer

  • No Image

    The stair lift will be on the left

    $0.00
  • No Image

    The stair lift will be on the right

    $0.00

spacer

  • No Image

    NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout

    $0.00
  • No Image

    Self Installation

    $0.00
  • No Image

    Nationwide Installation

    $599.00
  • No Image

    Nationwide Installation and Measurement Service

    $749.00
  • No Image

    Double Stair Lift Installation Service - Per Stair Lift

    $437.50
  • No Image

    Stair Lift Removal and Disposal

    $499.00

spacer

  • No Image

    Installation On Concrete, Steel, or Tile Stairs

    $300.00
  • No Image

    Installation In Remote or Limited Access Location

    $345.00

spacer

  • No Image

    Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.

    $0.00
  • No Image

    1. Overall length

    $0.00
  • No Image

    2. Top stair to bottom stair

    $0.00
  • No Image

    3. Staircase width

    $0.00
  • No Image

    4. Bottom clearance

    $0.00
  • No Image

    5. Rise of one step

    $0.00
  • No Image

    6. Tread of one step

    $0.00
  • No Image

    7. Diagonal

    $0.00
  • No Image

    8. Door at the top

    $0.00
  • No Image

    Need help measuring? Please see our "How to Measure" page.

    $0.00

spacer

Product Reviews
This product currently has no reviews. Would you like to leave one?
